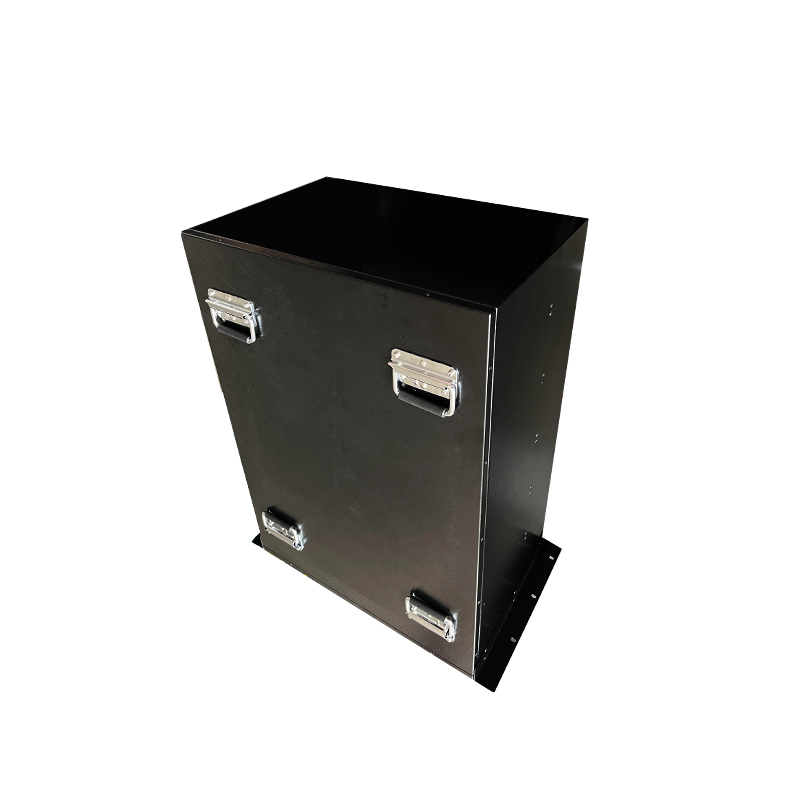

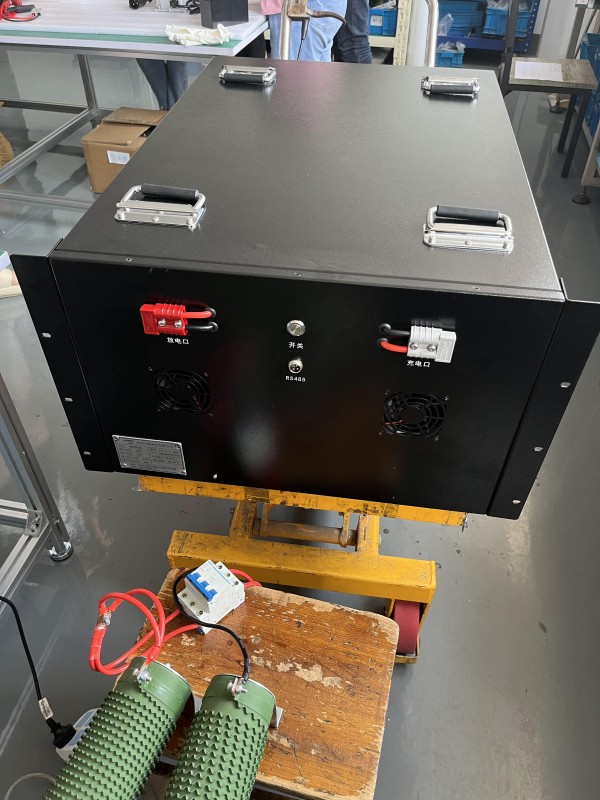

The 192V 50Ah UPS lithium battery is a special lithium battery pack specially designed for high power and high battery voltage UPS host. Our high-voltage lithium battery has the following characteristics:
Compared with lead-acid batteries, the life span of lithium batteries is 4-5 times that of lead-acid batteries. The advantage of long life is that it reduces the frequency of battery replacement. Lead-acid batteries need to be replaced every 2 years because their cycle life is only 300-500 times. Every time you replace the battery, you need to perform a very tedious operation. Without the assistance of professional and technical workers, it is easy to short-circuit and short-circuit the risk. At the same time, in the process of replacing the battery, the host may also appear to be down. Therefore, a longer service life can save you a lot of trouble. Reducing the maintenance of the battery also allows you to use the UPS system more safely.
For UPS lithium batteries, light weight and small size are its most prominent features. This feature is reflected in the fact that when our computer room is small, lithium batteries can save space. A space that is too crowded will cause poor ventilation, which will cause the battery to dissipate slowly. If it is not in time, it is easy to cause serious consequences. Therefore, in the past, the use of lead-acid batteries as battery backup power required a large amount of space, as well as a powerful heat dissipation system and air conditioning system. The UPS lithium battery system can perfectly solve the above problems.
Fast charging and discharging is a unique property of lithium batteries. When the utility power is disconnected, the UPS power supply will provide continuous power for the load. When the utility power is restored, because the UPS lithium battery has a fast charging function, it can be fully charged within 2.5 hours at the earliest, as a backup power to prepare for the next power outage. As for rapid discharge, during use, lithium batteries can quickly provide power support to the load to ensure the normal power supply of electrical equipment.
| Model No. | 192V 50Ah |
| Nominal voltage | 192V |
| Nominal capacity | 50Ah |
| Maximum charging voltage | 219V |
| Maximum charging current | 25A |
| Cycle life | ≥2000 times |
| Charge temperature | 0°C ~ 45°C |
| Discharge temperature | -20°C ~ 60°C |
| Storage temperature | -20°C ~ 45°C |
| Weight | 121.4 ± 3kg |
| Dimension | 800*560*372mm |
| Application | Specially designed for UPS system, also can be used for Back-up power, telecommunication base station, solar / wind systems, home energy storage, etc. |
Established in 2009, with many years of experience we are a professional and leading manufacturer specialized in LiFePO4 batteries. Our professional custom battery pack solutions help you save a lot of time and money, as well as get established on the market quickly.
Yes, we are a factory. Welcome to visit our company at any time.
Usually we do not have, because different customers have different requests. Even if the voltage and capacity are the same, other parameters may be different. However, we can finish your sample quickly once the order is confirmed.
Sure, OEM & ODM are welcome and the logo can be customized as well.
Usually 15-25 days, depending on the quantity, materials, battery cell model, and other factors. We suggest checking the delivery time case by case.
A 1PCS sample order is acceptable for testing purposes.
More than 800 cycles for lithium-ion batteries, and more than 2,000 cycles for LiFePO4 lithium batteries.
