1.1000 watts continuous output power; 2000 watts peak 2.High-efficiency operation conserves batteries to prolong run time
Send Inquiry

Product Description

1000 Watt Power Inverter Pure Sine Wave

  • The series of Power Inverters are designed to provide clean 120 Volt AC Power from a 12V battery or bank for many applications. Our Inverters provide a Pure Sine Wave output which is essential to efficiently running a wide variety of sensitive electronic devices such as Office Equipment, Computer, Power Tools, Kitchen appliances, Microwaves and Home Electronics like TV, Stereo's and more.
  • These are a must-have item for any Motorhome to run the 110V equipment when camping off-grid without a 110Vac supply.
  • Over voltage and under voltage protection.
  • Over temperature and over load protection.
  • Short circuit and reverse polarity protection.

Technical Specifications

Model
LA-1KS-1-1
LA-1KS-2-1
LA-1KS-1-2
LA-1KS-2-2
Continuous Power
1000W
Peak Power
2000W
DC Voltage
DC12V
DC24V
DC12V
DC24V
AC Voltage
100VAC or 110VAC or 120VAC ± 3V
220VAC or 230VAC or 240VAC ± 3V
No Load Current Draws
1A
0.5A
1A
0.5A
Max AC Input Current
8.5A
4.5A
DC Voltage Range
10-15.5V
20-31V
10-15.5V
20-31V
Low Voltage Alarm
Lo0: 10.5V
11V ± 0.3V
Lo0: 21V
22V ± 0.3V
Lo0: 10.5V
11V ± 0.3V
Lo0: 21V
22V ± 0.3V
Lo1: 10.8V
11.3V ± 0.3V
Lo1: 21.6V
22.6V ± 0.3V
Lo1: 10.8V
11.3V ± 0.3V
Lo1: 21.6V
22.6V ± 0.3V
Lo2: 11.3V
11.8V ± 0.3V
Lo2: 22.6V
23.6V ± 0.3V
Lo2: 11.3V
11.8V ± 0.3V
Lo2: 22.6V
23.6V ± 0.3V
Low Voltage Shut Down
Lo0: 10.5V
10.5V ± 0.3V
Lo0: 21V
21V ± 0.3V
Lo0: 10.5V
10.5V ± 0.3V
Lo0: 21V
21V ± 0.3V
Lo1: 10.8V
10.8V ± 0.3V
Lo1: 21.6V
21.6V ± 0.3V
Lo1: 10.8V
10.8V ± 0.3V
Lo1: 21.6V
21.6V ± 0.3V
Lo2: 11.3V
11.3V ± 0.3V
Lo2: 22.6V
22.6V ± 0.3V
Lo2: 11.3V
11.3V ± 0.3V
Lo2: 22.6V
22.6V ± 0.3V
Low Voltage Alarm Recovery
Lo0: 10.5V
11.3V ± 0.3V
Lo0: 21V
22.6V ± 0.3V
Lo0: 10.5V
11.3V ± 0.3V
Lo0: 21V
22.6V ± 0.3V
Lo1: 10.8V
11.6V ± 0.3V
Lo1: 21.6V
23.2V ± 0.3V
Lo1: 10.8V
11.6V ± 0.3V
Lo1: 21.6V
23.2V ± 0.3V
Lo2: 11.3V
12.1V ± 0.3V
Lo2: 22.6V
24.2V ± 0.3V
Lo2: 11.3V
12.1V ± 0.3V
Lo2: 22.6V
24.2V ± 0.3V
Low Voltage Protection Recovery
Lo0: 10.5V
12V ± 0.3V
Lo0: 21V
24V ± 0.3V
Lo0: 10.5V
12V ± 0.3V
Lo0: 21V
24V ± 0.3V
Lo1: 10.8V
12.3V ± 0.3V
Lo1: 21.6V
24.6V ± 0.3V
Lo1: 10.8V
12.3V ± 0.3V
Lo1: 21.6V
24.6V ± 0.3V
Lo2: 11.3V
12.8V ± 0.3V
Lo2: 22.6V
25.6V ± 0.3V
Lo2: 11.3V
12.8V ± 0.3V
Lo2: 22.6V
25.6V ± 0.3V
Over Voltage Shut Down
15.7V ± 0.3V
31.5V ± 0.5V
15.7V ± 0.3V
31.5V ± 0.5V
Over Voltage Recovery
15.3V ± 0.3V
29.5V ± 0.5V
15.3V ± 0.3V
29.5V ± 0.5V
Frequency
50HZ ± 0.5HZ or 60HZ ± 0.5HZ
Output Waveform
Pure Sine Wave
AC Regulation
THD < 3% (Linear load)
Output Efficiency
up to 91%
Remote Control (Optional)
Cable length: 15m is available.
Power-Saving mode
The power saving mode will be activated when the output power is less than 5W. When output power is more than 10W, the inverter will automatically return to normal status.
Ignition Function
Connect vehicles battery (or connect positive pole of vehicles' STARTER). The inverters start simultaneously When the vehicles start; The inverters will shut down meantime when the vehicles shut down.
Protection Function
Low voltage alarm
code: F05
Buzzer sounds and fault light turns red
Low voltage shutdown
code: F01
Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
Over input voltage protection
code: F02
Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
over load alarm
code: F06
Buzzer sounds and fault light turns red when output power is overloaded around 110%. But the BUZZ and F06 code will not occurred when the output power drop to a normal level within 20ms.
Over load protection
code: F03
The inverter shutdown when output power is overloaded around 120%, it need to be recovered by hand.
Over temperature alarm
code: F07
Buzzer sounds and fault light turns red when the inverter's internal temperature is higher than the limit value (90 ± 5 °C).
Over temperature protection
code: F04
The inverter will automatically return to normal status when the internal temperature drops to 80 ± 5 °C.
Short circuit protection
code: F03
Recover by hand
Reverse polarity protection
Built-in fuse
AC input overload protection
code: F09
The fan will start to work when the relay temperature is up to 60 ± 5 °C; but it will stop to work when the relay temperature drops to 50 ± 5 °C. The unit will alarm, and no AC output when relay temperature is up to 75 ± 5 °C; But it will auto recover when the relay temperature drops to normal value.
Fuse
Internal
USB port
5V, 2.1A
Working Temperature
-10°C -- +50°C
Production Size
330x150x78mm
Storage Temperature
-30°C -- +70°C
Packing Size
40.5x22x13.5cm
Warranty
18 months
N.W. / G.W. (KG)
2.6KG/3.2KG
Start
Bipolar soft-start
Quantity / Carton
6pcs
Cooling Way

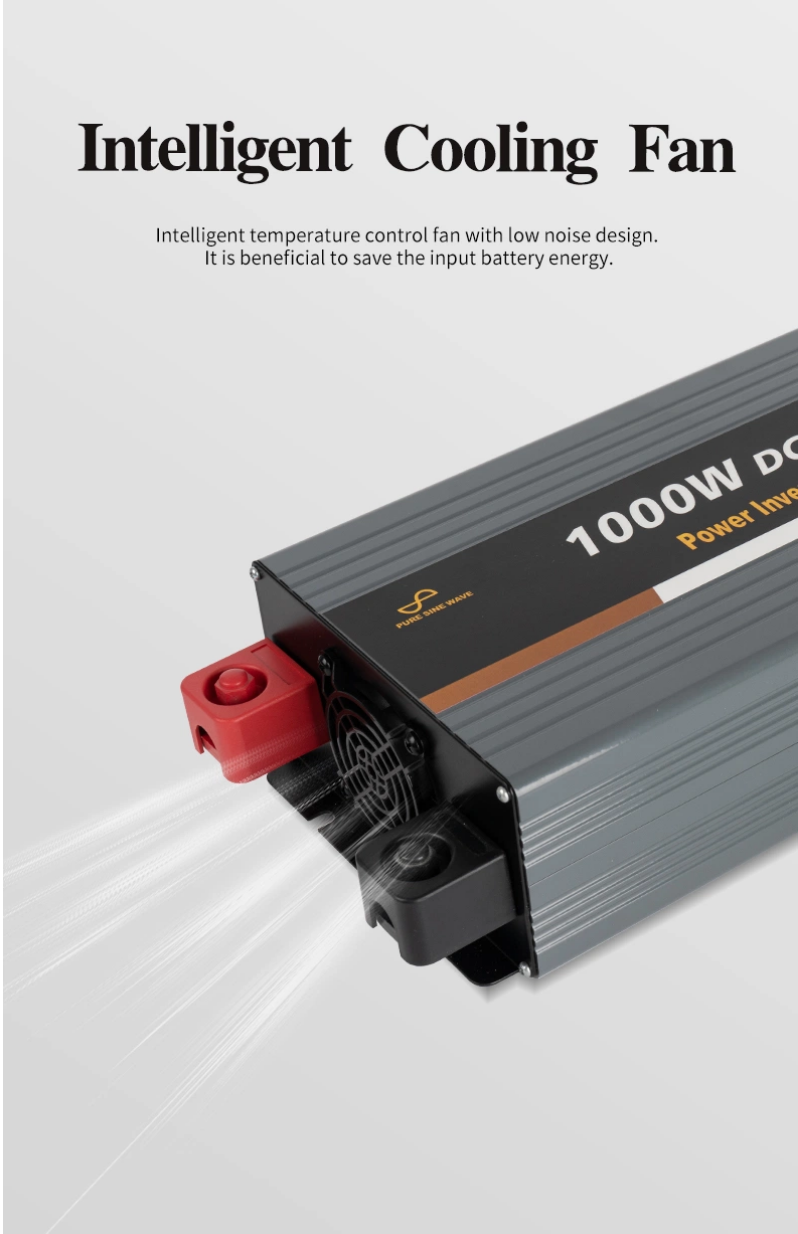

Intelligent cooling fan
Carton Size
46x42x43cm
Certification
CE, E-mark, FCC, ROHS
Carton Weight
20.0KG
Key Features
  1. 1000W continuous pure sine wave power and 2000W surge power.
  2. Ultra-clean pure sine wave power, with less than 3% total harmonic distortion.
  3. The inverter is lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

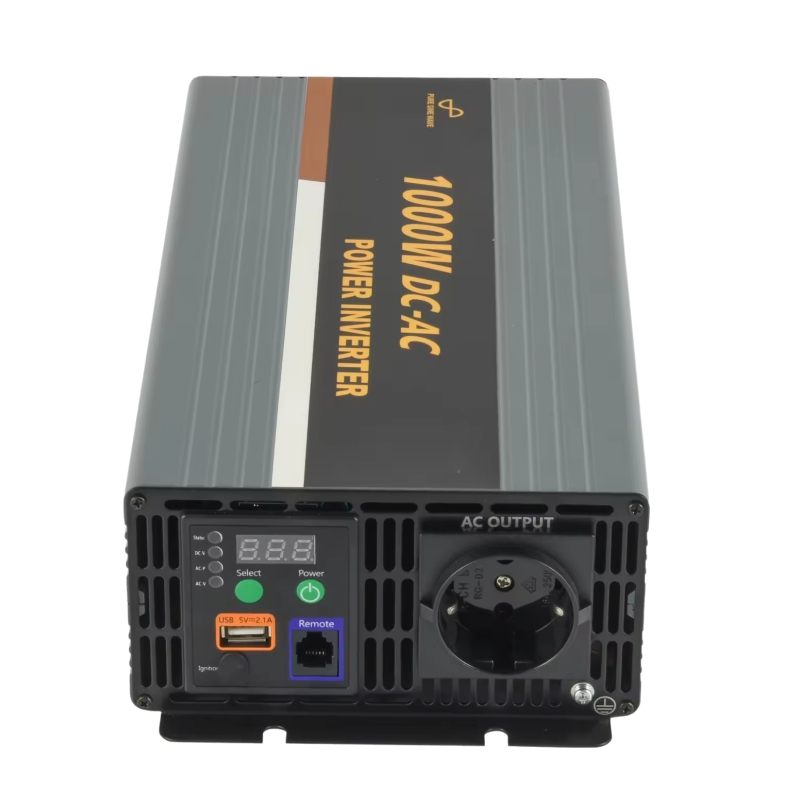

  4. Digital display shows the DC voltage, AC voltage, output power and some protection codes when inverter is in protection mode.
  5. Power saving mode can be selectable.
Application & Operation
  • Inverts 12V DC to 120V AC.
  • Maximum continuous Output Power 1000 Watt.
  • Meets 120V AC electronic appliance safety operating standard.
  • It can be used to power most electronic appliances or equipment.

Product Gallery

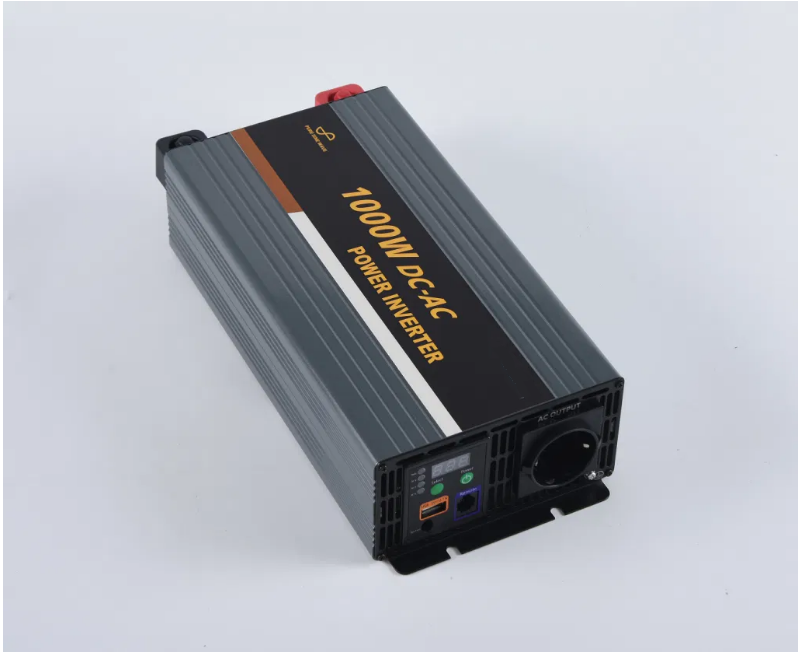

Pure Sine Wave Power Inverter 1000W
1000W Inverter Display and Ports
Inverter Connection Setup

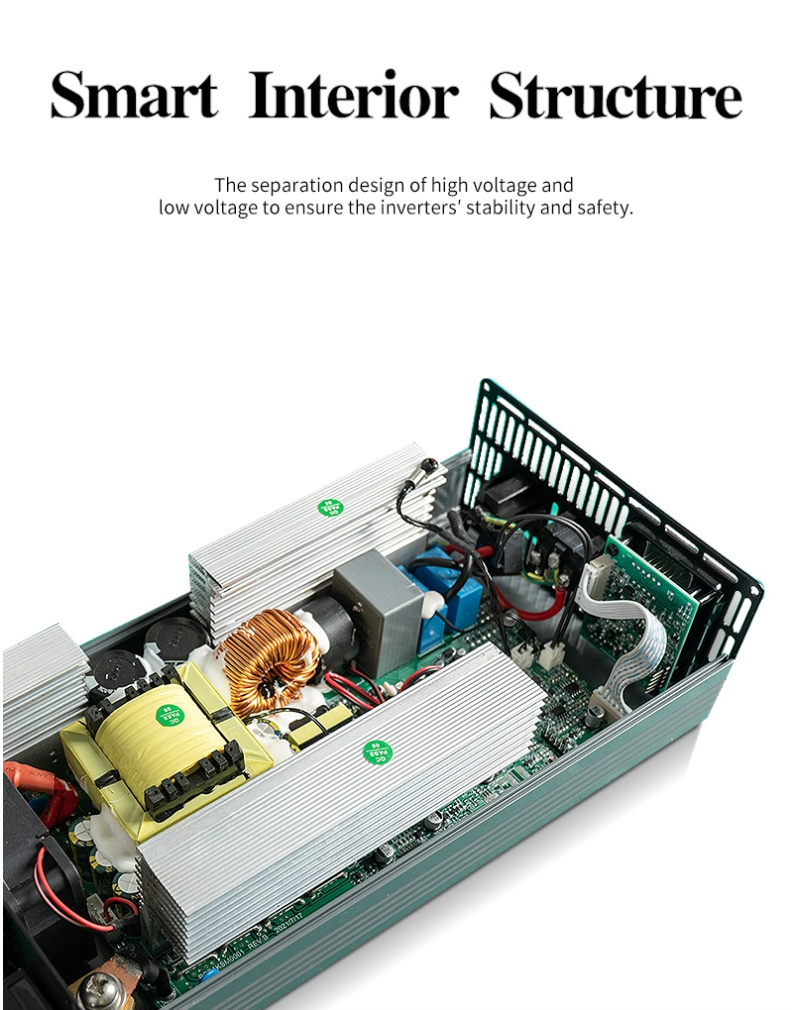

Inverter Internal Design and Protection

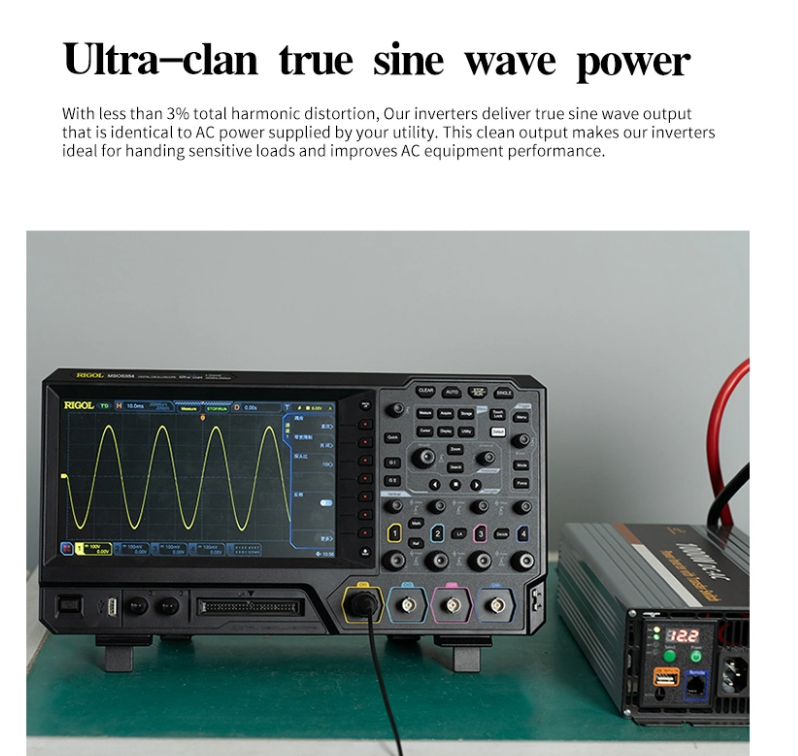

1000W Pure Sine Wave Output Inverter

Frequently Asked Questions (FAQ)

What devices can I run with the 1000 watt pure sine wave inverter?
This inverter is ideal for running sensitive electronic equipment, including office computers, power tools, kitchen appliances, microwaves, TVs, stereos, and other home electronics that require clean power.
Why is a pure sine wave output important?
A pure sine wave provides clean energy with less than 3% total harmonic distortion (THD). This is essential for the efficient operation of sensitive electronic devices, preventing performance issues and prolonging their lifespan.
What protection functions does the inverter feature?
It features comprehensive protections including low voltage alarm/shutdown, over input voltage protection, overload alarm/protection, over-temperature alarm/protection, short circuit protection, reverse polarity protection, and AC input overload protection.
How does the power-saving mode work?
The power-saving mode automatically activates when the output power drops below 5W. It automatically returns to normal status when the load output exceeds 10W, helping conserve battery energy.
What is the ignition function on the inverter?
The ignition function links the inverter to your vehicle's starter or battery. When the vehicle starts, the inverter turns on simultaneously. When the vehicle is shut down, the inverter shuts down too, preventing unwanted battery drain.
Does this inverter display fault codes and operational parameters?
Yes, it features a digital display showing DC voltage, AC voltage, output power, and specific fault protection codes (like F01 to F09) to make troubleshooting easy.
