The solar power generation system consists of solar battery packs, solar controllers, and batteries (groups). If you want the output power of the solar power system to be AC 220V or 110V, you also need to configure an inverter.
| Model No. | Rebak-F4850T |
| Nominal voltage | 48V |
| Nominal capacity | 50Ah |
| Max. continuous charge current | 60A |
| Max. continuous discharge current | 60A |
| Cycle life | ≥2000 times |
| Charge temperature | 0°C ~ 45°C |
| Discharge temperature | -20°C ~ 60°C |
| Storage temperature | -20°C ~ 45°C |
| Weight | About 30kg |
| Dimension | 440mm*320mm*133mm |
| Application | Special designed for telecommunication base station, also can be used for Back-up power, solar/wind systems, home energy storage, UPS, etc. |
Mainly composed of solar cell components, controllers, and batteries. If the output power is AC 220V or 110V, an inverter is also required to convert the power for standard appliances.
Converts direct current from solar modules into alternating current matching the mains grid via grid-connected inverters. Small-scale grid-connected and BIPV systems are mainstream due to fast construction and footprint advantages.
Also known as decentralized power generation or distributed energy supply. It configures smaller photovoltaic power supply systems at or close to the user site to meet specific user needs and support economic distribution network operations.

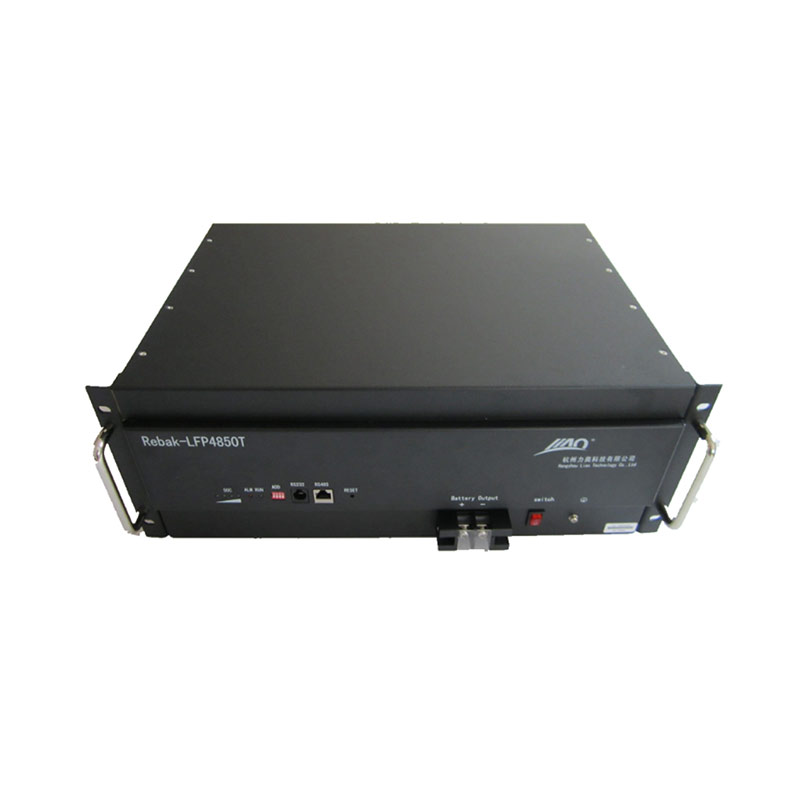

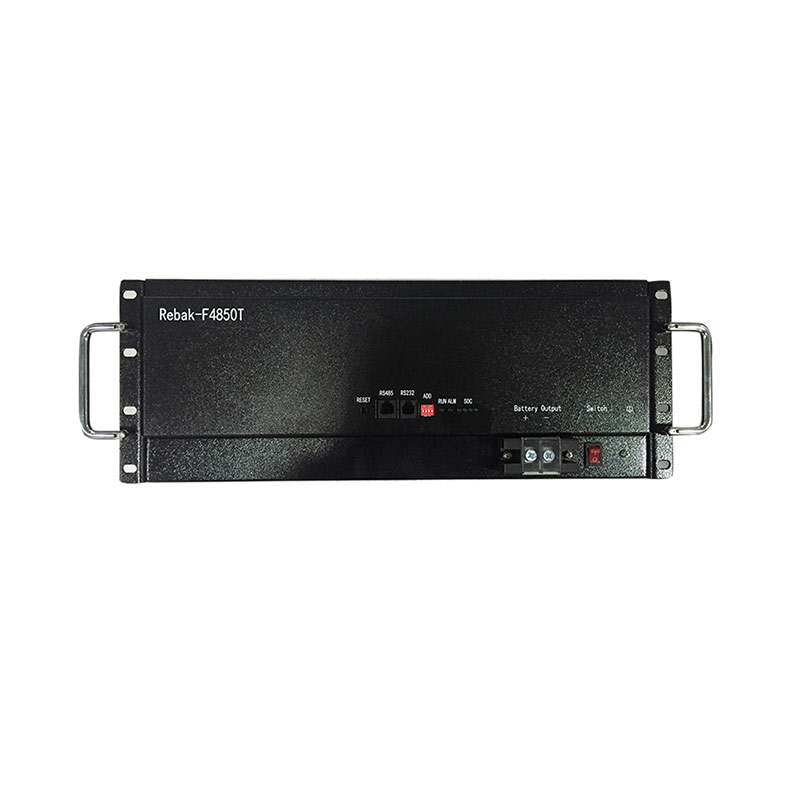

Standard 19-inch rack mounting 48V 50Ah LiFePO4 battery pack designed for solar energy storage systems.
Long cycle life: Rechargeable lithium-ion cell provides over 2000 cycles, lasting 7 times longer than lead-acid batteries.
Superior safety performance: Recognized industry-wide as one of the safest lithium battery types available.
Built-in communication functionality supporting RS232 or RS485 communication protocols.
Parallel functionality: Multiple units can be configured in parallel to scale up overall storage capacity.
High energy density, zero memory effect, and equipped with a convenient SOC (State of Charge) indicator.
