Established in 2009, with many years of experience, we are a professional and leading manufacturer specialized in LiFePO4 batteries.
Our professional custom battery pack solutions help you save a lot of time and money, as well as get established on the market quickly.
Technical Specifications

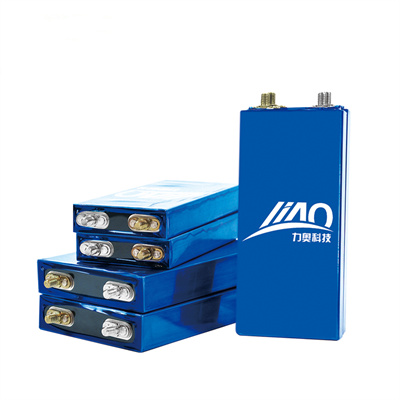

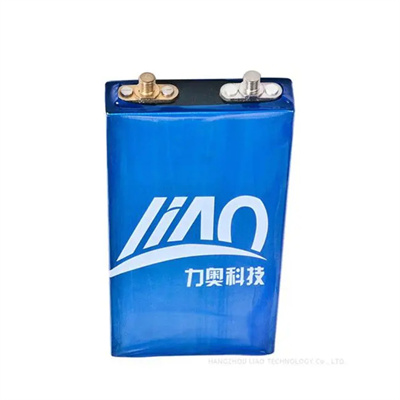

Battery Design3.2V 13Ah prismatic LiFePO4 battery cell with aluminum hard case.
Dimension18*65*150mm, including bolts, not including PVC film, tolerance ±0.5mm.
Nominal Capacity13Ah, based on 25±5℃, 0.2C, CC (constant current) discharged to 2V.
Standard Charge Current2.4A = 0.2C, CC (constant current) charged to 3.65V, then CV (constant voltage) 3.65V till current decline to 240mA.
Max Charge Current12A = 1C, CC (constant current) charged to 3.65V, then CV (constant voltage) 3.65V till current decline to 240mA.
Standard Discharge Current2.4A = 0.2C, CC (constant current) discharged to 2V.
Max Continuous Discharge Current36A = 3C, CC (constant current) discharged to 2V.
Max Peak Discharge Current60A = 5C, lasting time less than 1 min.
Screw Terminal DesignVery easy for assembling.
Cell AdvantagesNo memory effect, high discharge rate, high energy density.
Cycle LifeMore than 2000 times. Standard charge at 0.2C CC/CV to 3.65V, cut off when current ≤0.02C at 25±5℃. Standard discharge at 0.5C CC to 2V at 25±5℃. Repeat the cycle of standard charge and discharge. When the battery capacity is less than 80% of the nominal capacity, stop the test.
Storage GuidelinesWhen the battery needs to be long-term stored, charge the battery to about 10%-20% capacity, store it in dry and ventilated place. Charge and discharge battery one time every 6 months.
Application Areas
Energy Storage Equipment
Energy storage equipment for solar and wind power generation systems, uninterruptible power system UPS, and solar cells used as energy storage equipment.
Electric Tools
High-power electric tools (wireless), electric drills, weeders, etc.
Light Electric Vehicles
Electric motor vehicles, "electric bicycles," recreational vehicles, "golf carts," electric pushers, "clean vehicles," hybrid electric vehicles (HEV).
Small Equipment
Medical equipment: (electric wheelchair, electric scooter), toys (remote control electric airplane, car, boat).
Other Small Electrical Appliances
Miner’s lamps, implantable medical devices (lithium iron phosphate is non-toxic, and only iron lithium can meet the requirements for lithium batteries), replacing lead acid, nickel hydrogen, nickel cadmium, lithium cobalt, and lithium manganese batteries in small electrical appliances.
Product Showcase
Frequently Asked Questions
Are you a factory?
Yes, we are a factory. Welcome to visit our company at any time.
Do you have current samples in stock?
Usually we don't have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once the order is confirmed.
Are OEM & ODM available?
Sure, OEM & ODM are welcome and the logo can be customized too.
What's the delivery time for mass production?
Usually 15-25 days, it depends on the quantity, material, battery cell model and so on, we suggest checking the delivery time case by case.
What is your MOQ?
A 1PCS sample order can be acceptable for testing.
What is the normal lifetime of the battery?
More than 800 times for lithium ion battery; more than 2,000 times for LiFePO4 lithium battery.
