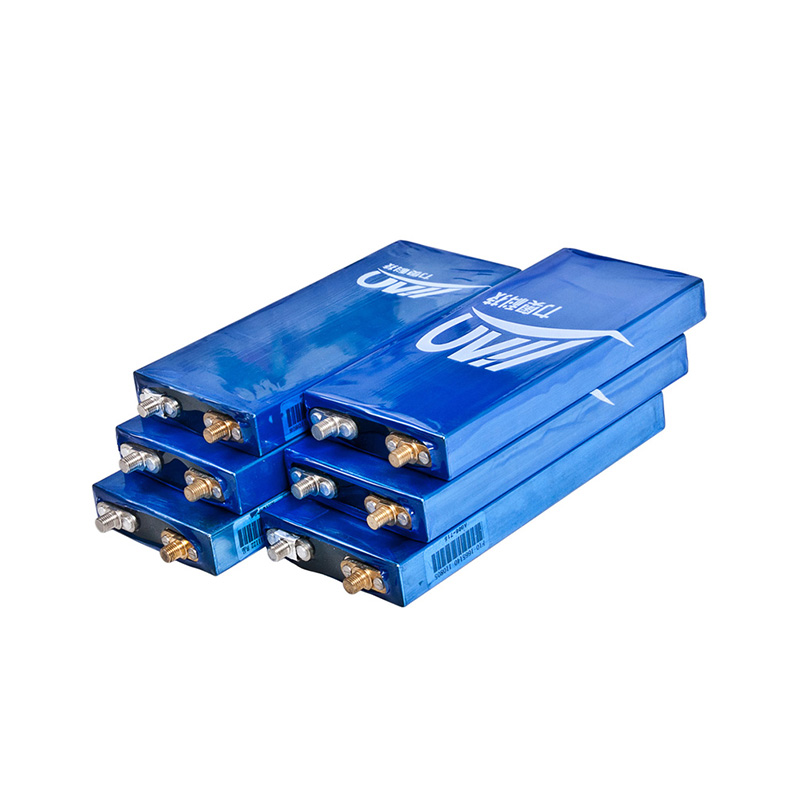

High-Quality 3.2V 10Ah LiFePO4 Prismatic Cell Battery - The Epitome of Safety and Performance! Our LiFePO4 prismatic cell battery stands as a beacon of reliability and safety in the realm of energy storage solutions. With a capacity of 3.2V 10Ah, this lifepo4 cells is engineered to deliver unparalleled performance across various applications.
Prioritizing safety above all else, our LiFePO4 prismatic cell batteries undergo rigorous forced safety testing to ensure compliance with the highest industry standards. Rest assured, our lifepo4 battery meet stringent safety requirements, providing peace of mind for users and operators alike.

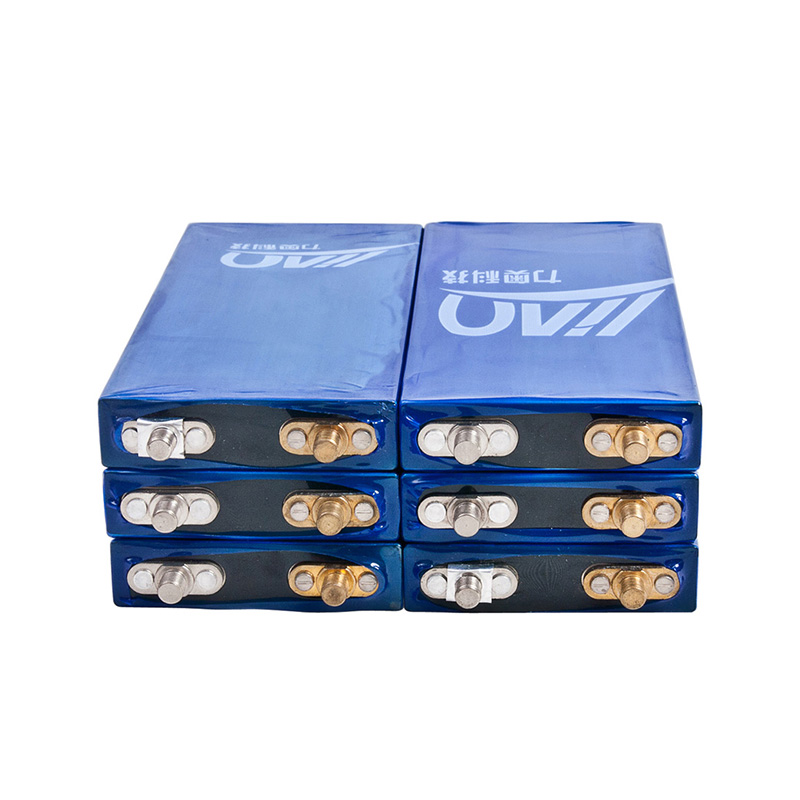

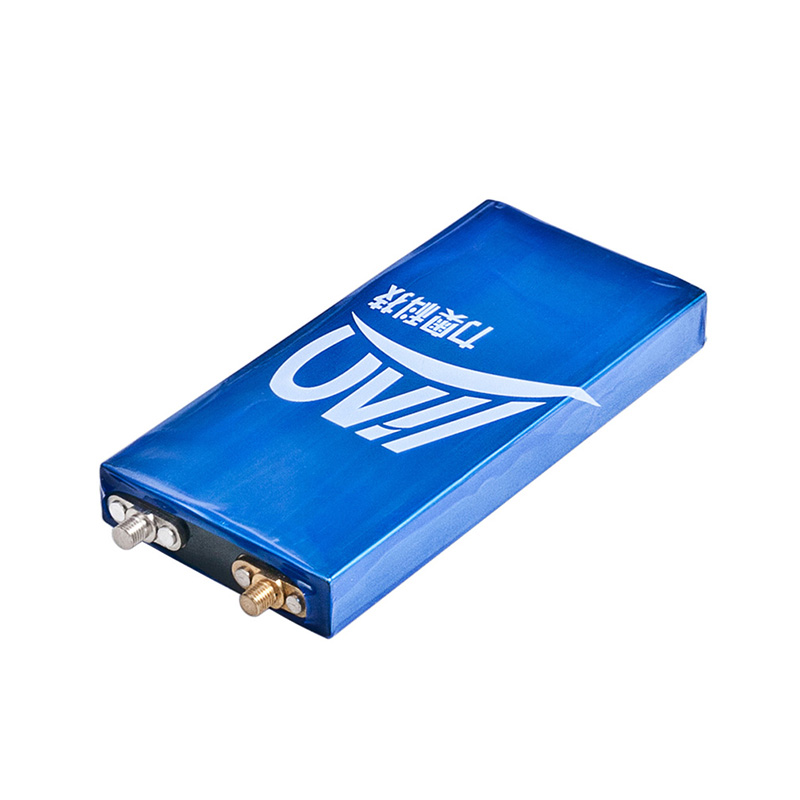

Prismatic LiFePO4 battery cell using positive and negative stud design, for easy assembling and maintenance. We keep strict cells' grouping and matching: Capacity, Resistance, Constant current ratio, Discharge Platform, Open-circuit voltage and related parameters.
The shell of the LiFePO4 battery cell is made of aluminum, which can have a better cooling effect, also have a certain mechanical strength and long life.
Battery cell using lamination technology, has the following advantages:
① High space utilization efficiency of high energy density batteries. The 3.2V 10Ah LiFePO4 battery cell: 32Wh; 275g; 116.4Wh/kg; 15mm*65mm*150mm
② Low internal resistance. Our 10Ah battery cell internal resistance: ≤3mΩ, Nearly 50% lower than most of other manufacturers.

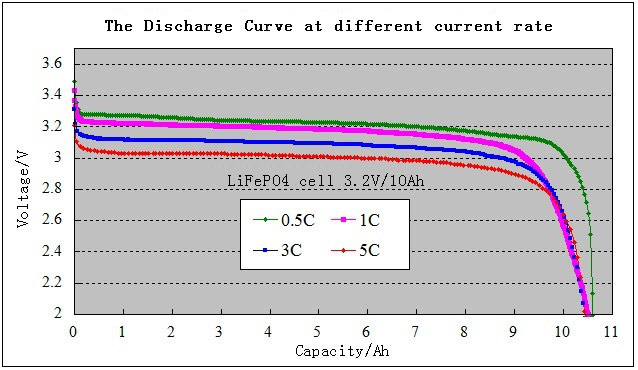

③ Excellent large current discharge performance. Sustainable 5C discharge, and the max pulse discharge current can be 8C.

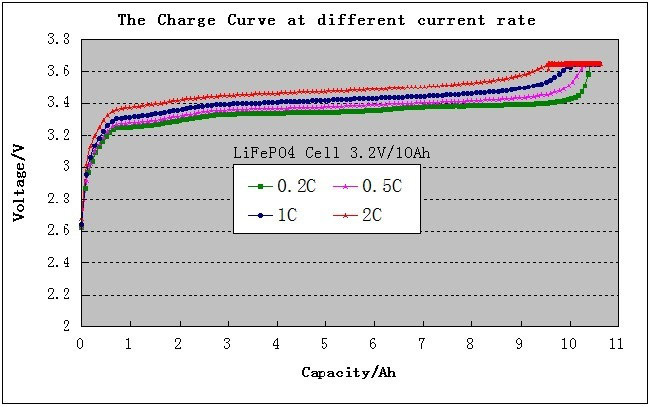

Good performance of the large current charging. The maximum our lpf cells possible can be 2C charge while the cycle life of the battery will not be affected.

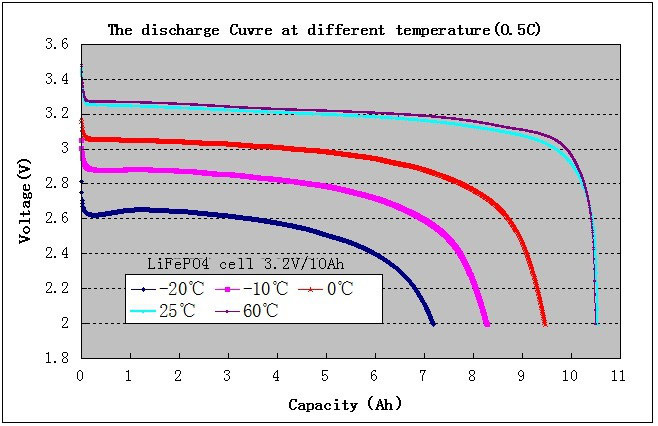

A wide range temperature for battery cells discharge. Good discharge performance in high temperature and low temperature. The 0.1C discharge can be used at extremely low temperatures -40℃.

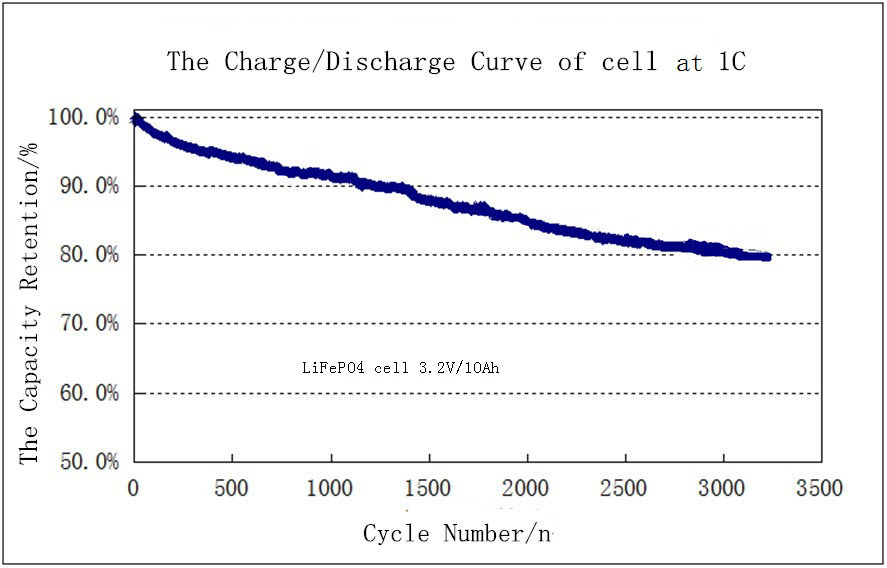

Long cycle life. After a long match of materials and processes, developed a long-life lifepo4 battery packs: 25±5℃, 100%DOD, 1C cycle 2000times, capacity keeps more than 80%.
| Specification Parameter | Value Details |
|---|---|
| Model No. | F10-1565150 |
| Nominal voltage | 3.2V |
| Nominal capacity | 10Ah |
| Internal resistance | ≤3.5mΩ |
| Cycle life | ≥2000 times |
| Charge temperature | 0°C~45°C |
| Discharge temperature | -20°C~60°C |
| Storage temperature | -20°C~45°C |
| Weight | 275g |
| Dimension | 15mm*65mm*150mm |
| Max. continuous charge current | 1C |
| Max. continuous discharge current | 3C |
| Max. impulse discharge current | 5C |
| Application | Make battery packs for power supply and energy storage systems |
Widely use battery, electric vehicles, electric motorcycles, electric bicycles, sightseeing coaches, batteries pack DIY, inverter battery, outdoor high power lithium battery pack, solar panel, UPS
