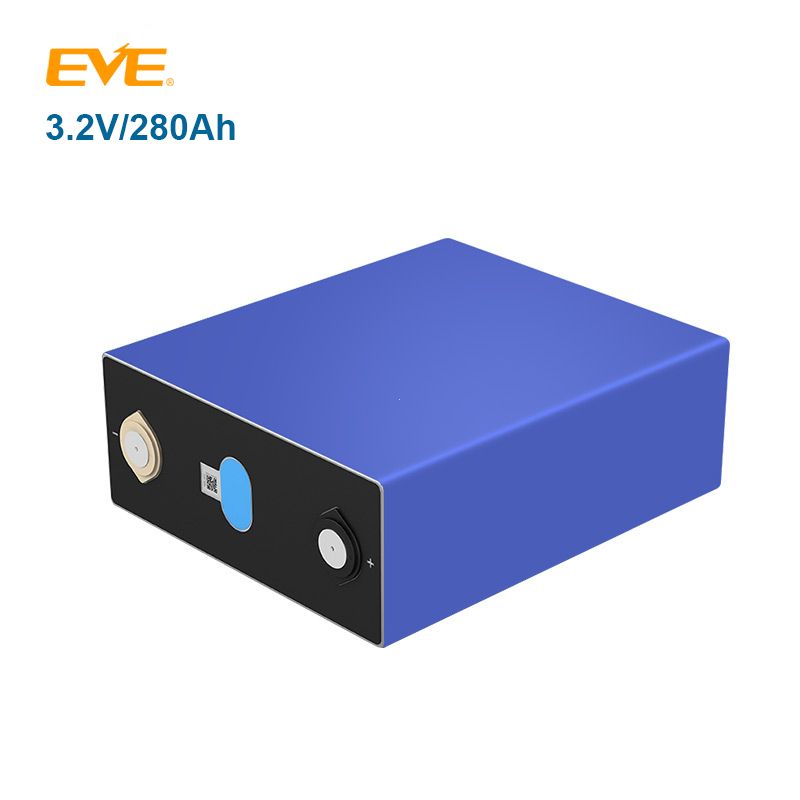

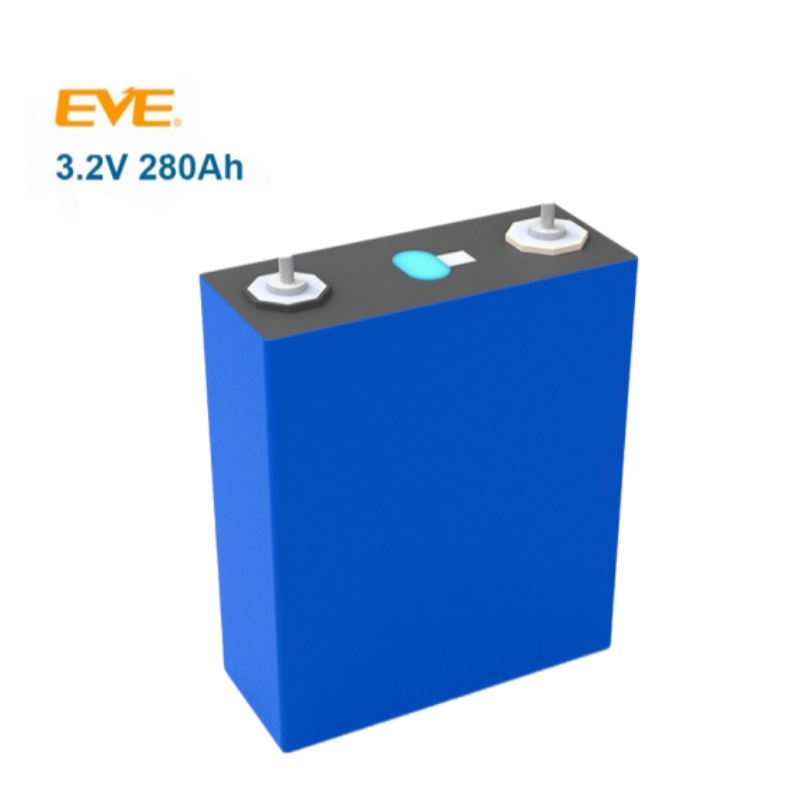

This is EVE 3.2V 280Ah LiFePO4 battery cell (model LF280K). These high-quality prismatic battery cells are 100% brand new, Grade A, and come in original packaging. Designed for wholesale and bulk sale projects, each cell is supplied with one set of standard bus bars and bolts (1 bar and 2 bolts).
High-Performance Lithium Solution: Genuine Grade A prismatic LiFePO4 cells designed for power, durability, and safety.
| Parameter | Specification Details |
|---|---|
| Manufacturer | EVE |
| Model No. | LF280K |
| Typical Voltage | 3.2V |
| Typical Capacity | 280Ah |
| AC Impedance Resistance | ≤ 0.25mΩ |

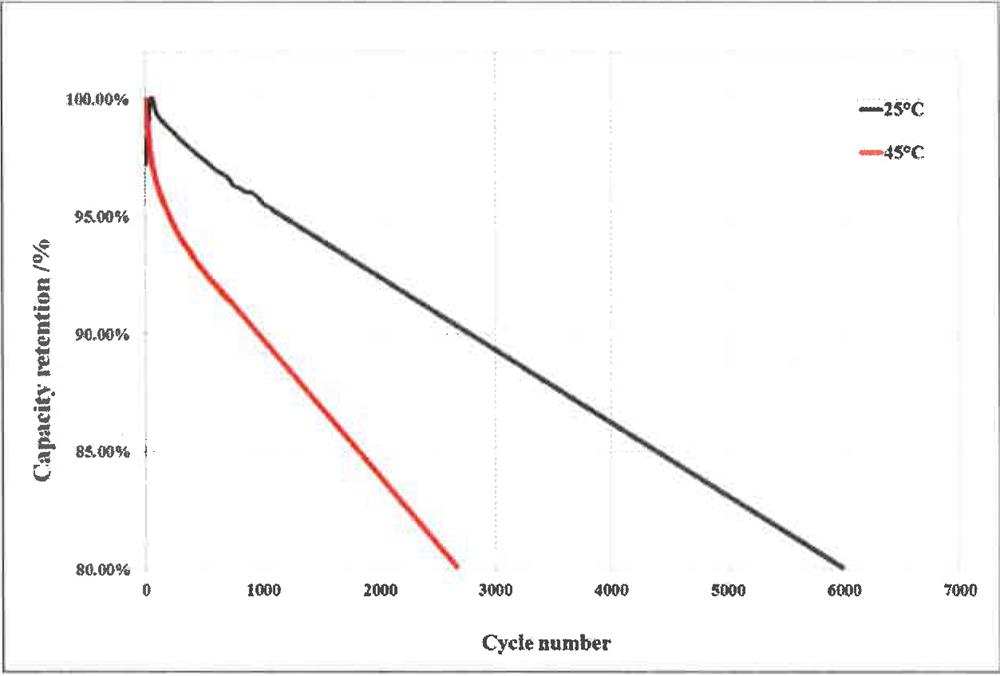

| Life Cycle | 8000 cycles |
| Standard Charge/Discharge Current | 0.5C/0.5C |
| Standard Charge Cut-off Voltage | 3.65V |
| Standard Discharge Cut-off Voltage | 2.5V |
| Continuous Charge/Discharge Current | 1C/1C |
| Pulse Charge/Discharge Current (60s) | 1C/2C |
| Recommended SOC Window | 10% ~ 90% |
| Charging Working Temperature | 0°C ~ 55°C |
| Discharging Working Temperature | -20°C ~ 55°C |
| Short Term Storage Temperature (< 1 Month) | -20°C ~ 45°C |
| Long Term Storage Temperature (< 1 Year) | 0°C ~ 35°C |
| Storage Moisture | < 95% |

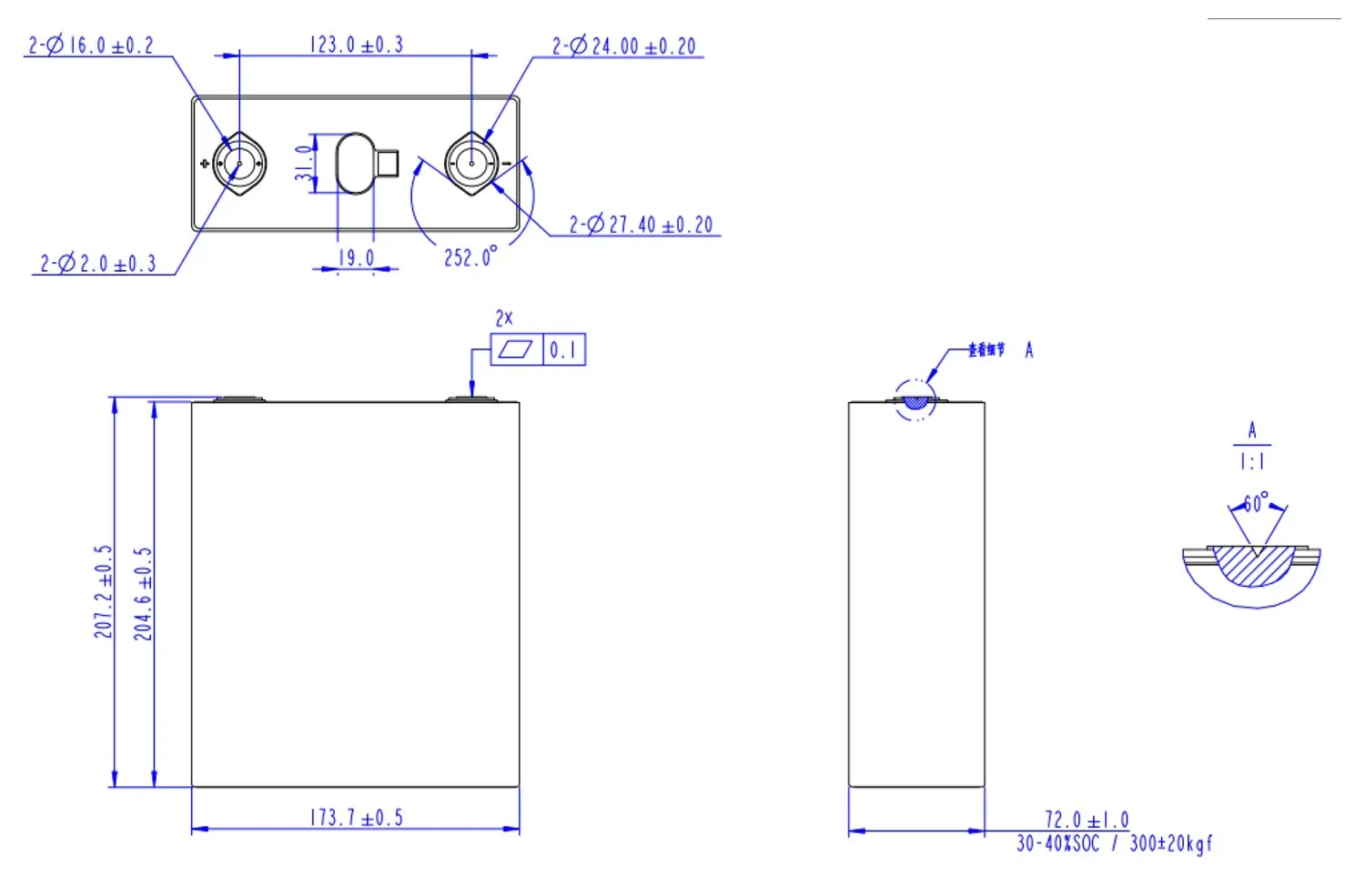

| Cell Dimension | 207.5 * 72 * 173.7mm |
| Cell Weight | 5420g |
| Certification | UL, MSDS, UN38.3, CE |
| Warranty | 5 Years |
Voltage and internal resistance are rigorously tested before packaging. Voltage deviation is kept under 0.01V, and resistance deviation is under 0.02mΩ, ensuring perfectly matched and balanced cells prior to delivery.
Engineered for long-term service with a lifespan of 5 to 15 years, these cells support between 2000 and 8000 complete charge/discharge cycles.
Ideal for renewable energy storage (solar and wind), electric vehicles (EV), UPS data centers, cell towers, marine vessels, stationary generators, AGVs, and RVs.
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.
Support is available 24 hours per day, 7 days per week. Any questions regarding product operation, installation, or performance will be highly appreciated and addressed promptly.
Every EVE LiFePO4 battery cell is thoroughly tested for voltage and internal resistance before packaging. The deviation tolerance is strictly kept below 0.01V for voltage and 0.02mΩ for internal resistance to guarantee matched and balanced cells.
Each individual battery cell comes with a complete set of connection hardware, which includes 1 copper bus bar and 2 secure bolts.

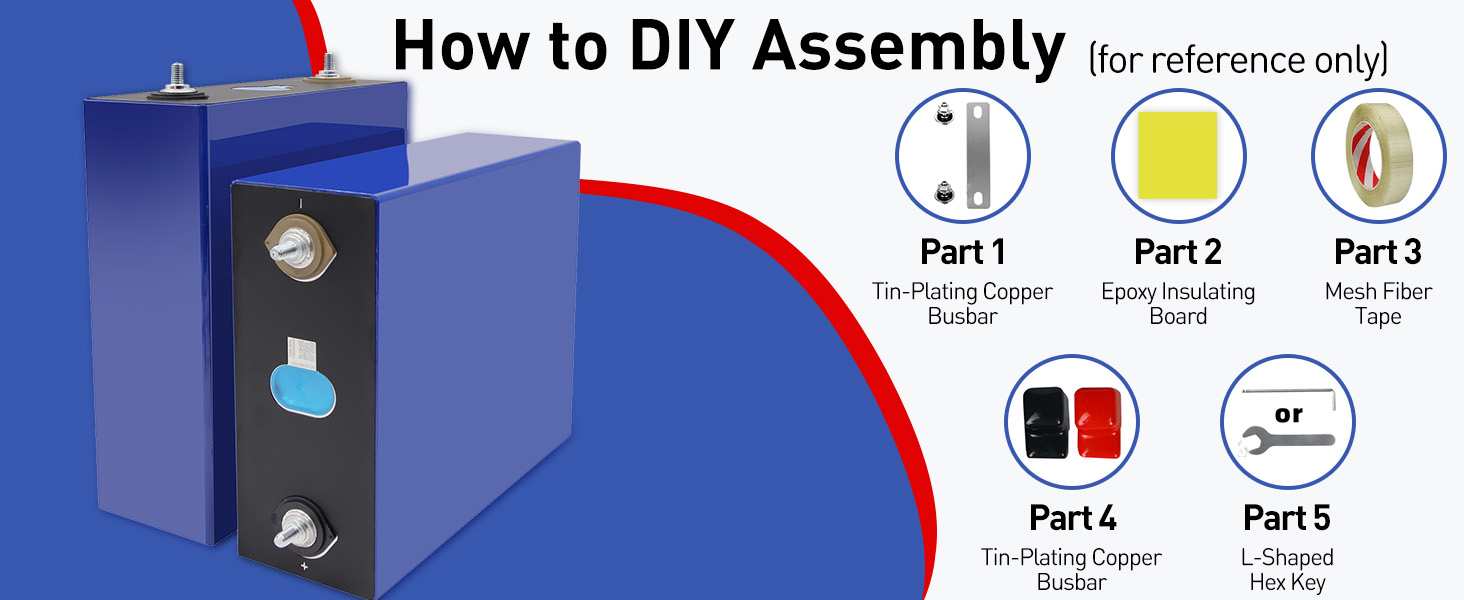

Yes, these LiFePO4 3.2V 280Ah battery cells are designed for simple installation and configuration. They can be connected easily in series or parallel to increase voltage and capacity, making them an excellent choice for DIY battery projects.
Batteries are shipped via air or ocean cargo depending on project demands. All shipments conform to international safety regulations and come with official MSDS and UN38.3 documentation.
