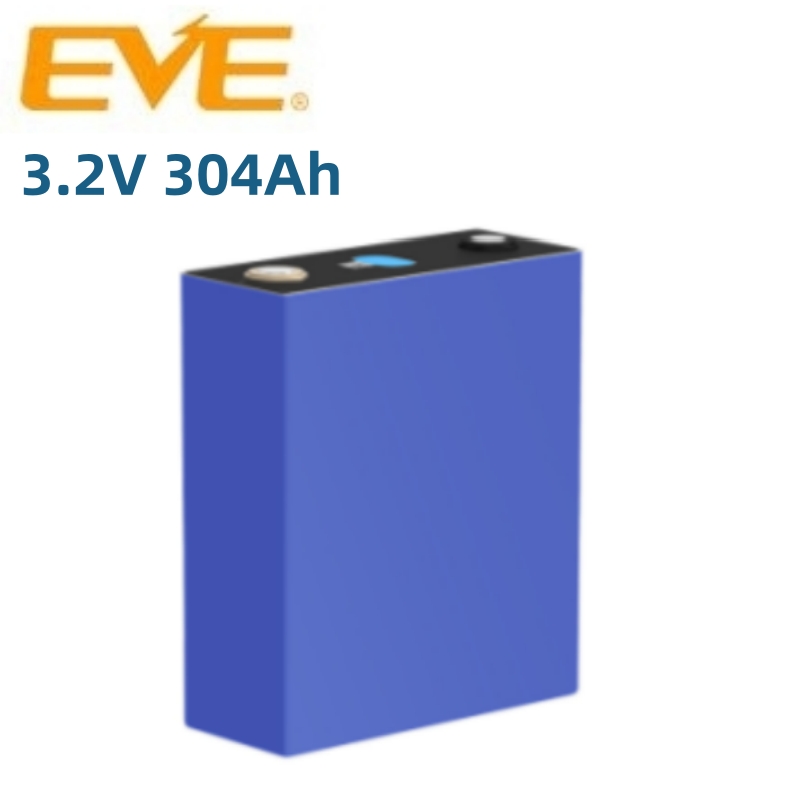

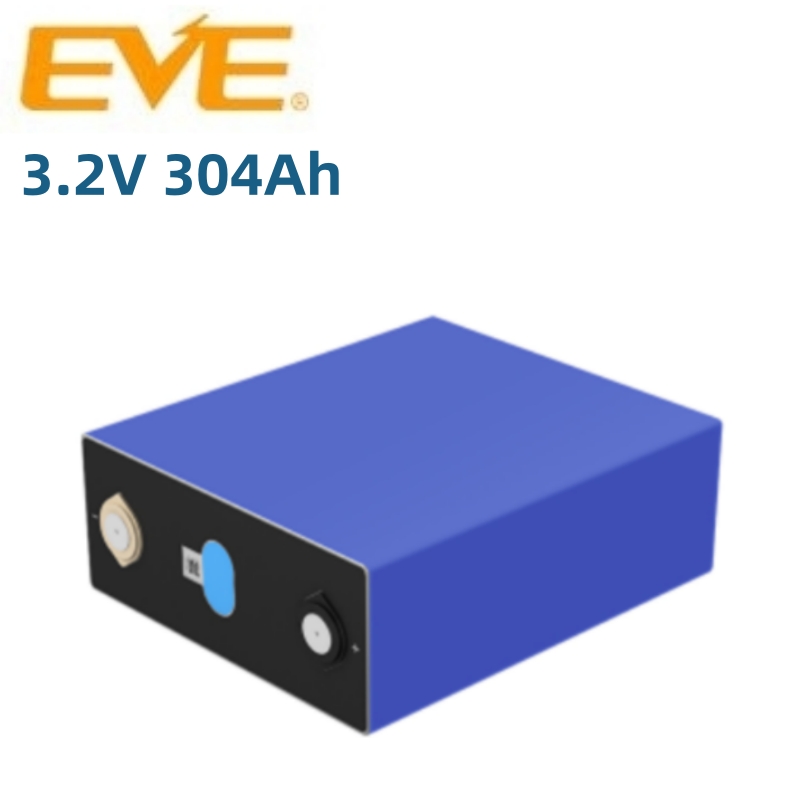

This is EVE 304Ah LiFePO4 battery cell (model number: LF304). These 3.2V battery cells are available for bulk sale and are 100% brand new, A-grade cells in original packaging.
Each cell is supplied with a set of accessories (1 bus bar and 2 bolts). Please contact us online if additional hardware is required.
| Manufacturer | EVE |
| Model No. | EVE-LF304 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 304Ah |
| Cycle Life | 4000 cycles |
| Working Voltage | 2.5 - 3.65V |
| Internal Resistance | ≤ 0.6mΩ |
| End of Discharge Voltage | 2.5V |
| Charge Method | CC/CV |
| Standard Charge/Discharge Current | 0.5C / 0.5C |
| Continuous Charge/Discharge Current | 1C / 1C |
| Pulse Charge/Discharge Current (30s) | 2C / 2C |
| Recommended SOC Window | 10% - 90% |
| Charging Working Temperature | 0℃ - 60℃ |
| Discharging Working Temperature | -30℃ - 60℃ |

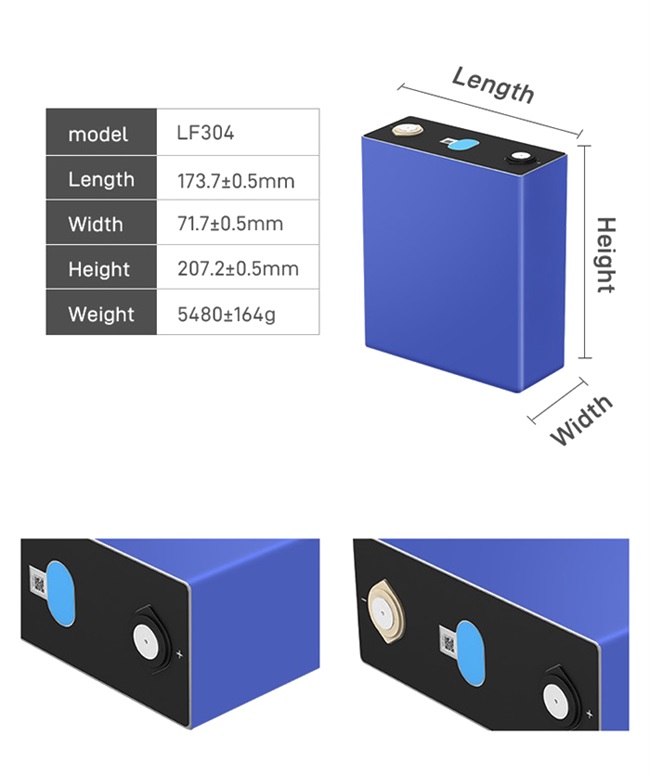

| Dimensions (mm) | L173.5 * W72.0 * H208.8mm |
| Weight | 5.49KGS |
| Shell Material | Aluminum |
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.
Yes, these are 100% brand new, genuine Grade A prismatic LiFePO4 cells from EVE, complete with original packaging. The cells are matched and balanced before shipping.
Each individual battery cell comes with one set of original connection hardware, which includes one bus bar and two bolts.
Yes, EVE LF304 3.2V cells are designed for easy assembly. They can be connected in series or parallel to achieve the desired voltage and capacity for custom energy storage systems.
All cells are shipped with the required documentation, including MSDS and UN38.3 test reports, which are compliant with both air and ocean freight shipping regulations.
We offer comprehensive technical and product support. Any questions you have about battery assembly, parameter setup, or usage will be addressed promptly by our technical support team.
