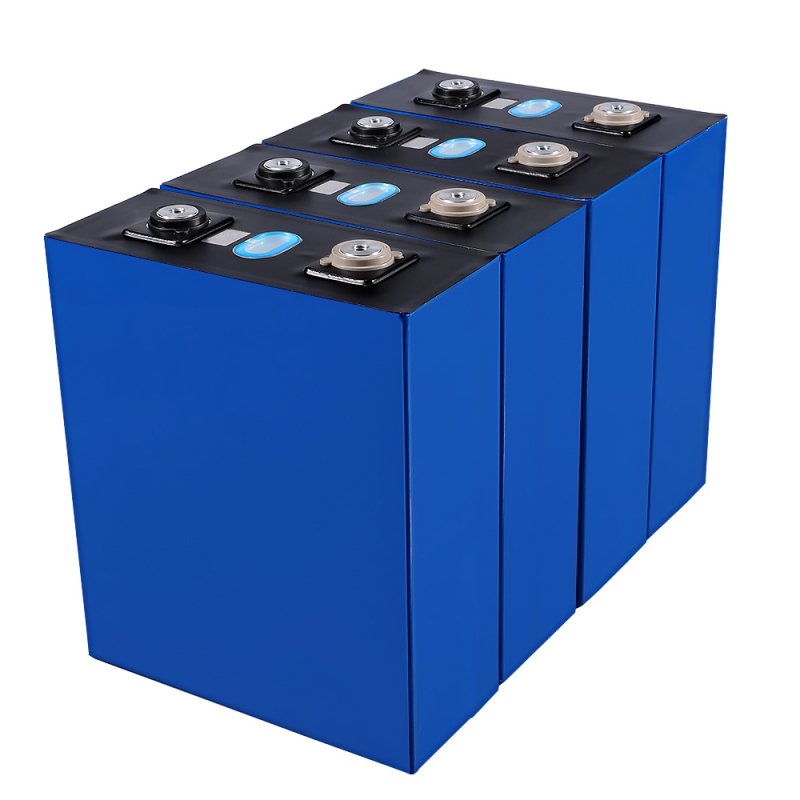

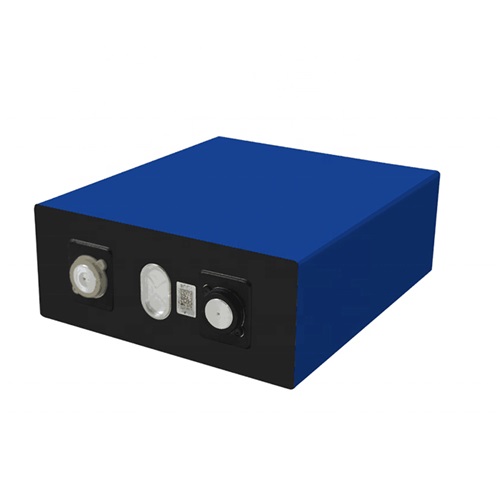

CATL 240Ah LFP cells can meet the needs of high-energy density and long distance travel, as well as safety and reliability. It has been widely applied to battery electric vehicles (BEV), plug-in hybrid electric vehicles (PHEV), hybrid electric vehicles and energy storage systems.
| Item | Parameters | |
|---|---|---|
| Nominal Capacity | 240Ah | |
| Nominal Voltage | 3.2V | |
| Internal Resistance | ≤ 0.15mΩ | |
| Standard Charge Current | 120A | |
| Charge Voltage | 3.65V | |
| Discharge Cut-off Voltage | 2.5V | |
| Standard Discharge Current | 120A | |
| Max. Continuous Discharge Current | 240A | |
| Weight | 5.1Kg ± 0.2kg | |
| Operating Temperature | Charge | 0 ~ +60℃ |
| Discharge | -30 ~ +60℃ | |
| Storage Temperature | ≤ 1 month | -20 ~ +45℃ |
| ≥ 6 months | -20 ~ +35℃ | |
| Dimensions | 71.3 * 173.9 * 207mm | |
⚠️ Important Quality Warning: There are many vendors that provide 240Ah cells at a very low price. However, these batteries are often Grade B cells or renewed batteries styled to look new. These cells have poor performance and may only function for 1 or 2 years.
✓ We provide brand new Grade A cells backed by a three-year warranty, designed to last 7-8 years on average.
Brand new Grade A CATL LiFePO4 batteries are one of the most popular battery choices with a capacity of 240Ah. Hundreds of battery cells are in stock for various high-demand setups.
How to proceed with an order?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.
How about the after-sales service?
We welcome you to contact us 24 hours per day, 7 days per week. Any questions you have will be highly appreciated and resolved promptly.
What is the difference between Grade A and Grade B cells?
Brand new Grade A cells offer full capacity, optimal internal resistance, consistency, and a long lifespan of 7-8 years. Grade B or renewed cells are cheaper but have poor consistency, lower capacity, and might only last for 1 to 2 years.
What is the cycle life of CATL 240Ah LiFePO4 cells?
These cells feature a long cycle life of 3000+ cycles under standard operating conditions before reaching 80% of their initial capacity.
What are the charge and discharge current limits?
The standard charge current is 120A (0.5C) up to a voltage of 3.65V. The standard discharge current is 120A, with support for a maximum continuous discharge current of 240A (1C).
Can these batteries operate in cold environments?
Yes. While charging should occur between 0°C and 60°C, the discharge temperature range is wider, supporting operation in cold temperatures down to -30°C and up to +60°C.
