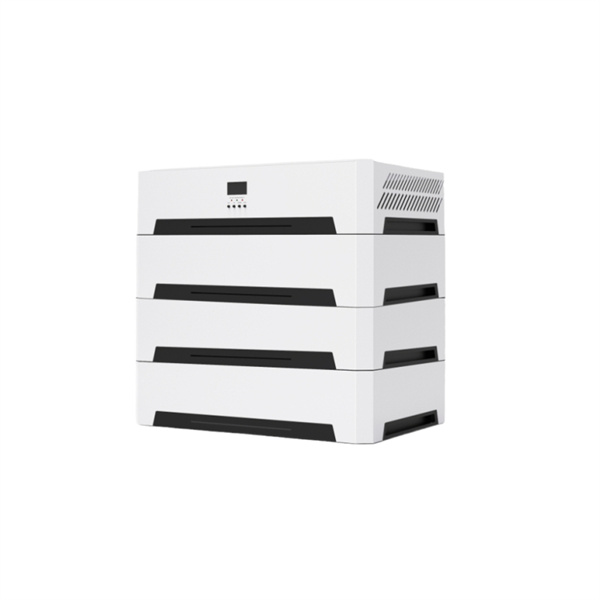

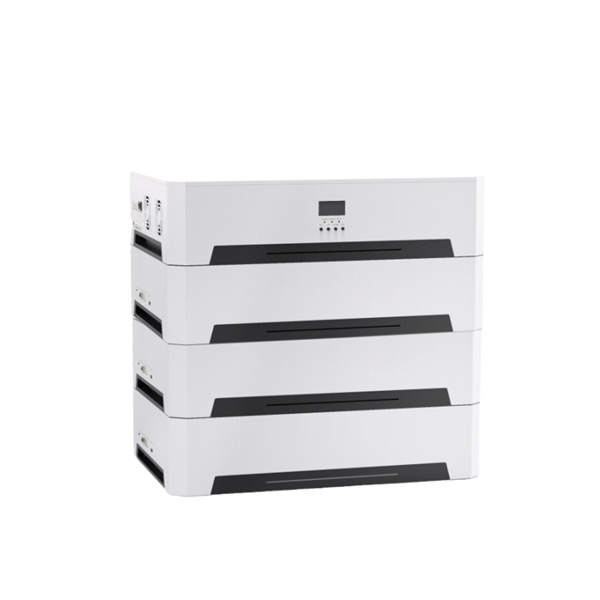

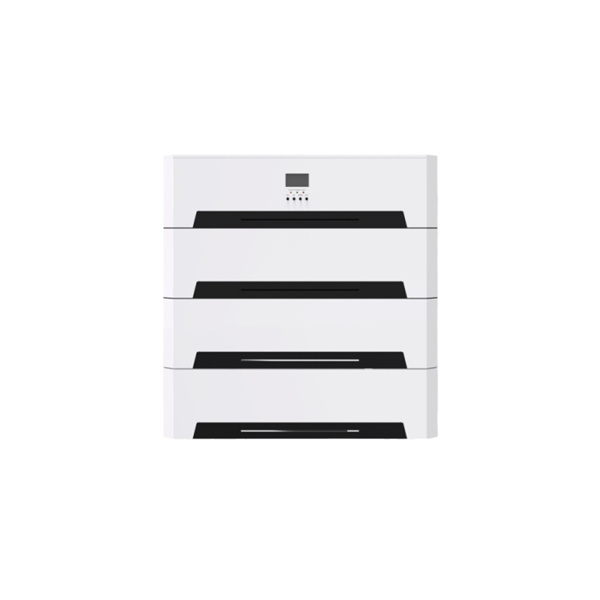

OEM 48V 15kwh 300AH ESS Energy Storage System Lifepo4 Battery Pack Home Solar Power Storage System Manufacturer, Product

1.Long cycle life,with around 2000 times on 80% DOD 2.Smart BMS with over charging/discharging protect 3.Support multiple communication protools with RS485 4.15kw for power conversion system 5.With 2 Output specifications of 220V and 110V

Product Description

Rechargeable lithium batteries use safe lithium cell LIFEPO4. Lithium-ion batteries are rechargeable lithium-ion batteries that can be used in tandem for more energy storage. Energy input are from wind energy or solar energy etc green energy, the electrical energy storage devices, can use different times to output electricity. For example, wind energy and solar energy are unstable and not easy to supply current all the time. Combined with wall-mounted battery packs, energy storage system problems will be solved.This battery is designed to achieve market leading energy density.

Model No. LA-HEH48-15.0H-S1.0
Battery 15kWh
Battery Capacity 300ah
Weight 186kg
Dimension(L*D*H)mm 710*450*800
Battery Type LiFePo4
Rated Voltage 51.2V
Working Voltage Range 44.8~57.6
Maximum Charging Current 100ah
Maximum Discharging Current 100ah
DOD 80%
Communication RS485/CAN/WIFI
Charge temperature 0°C~45°C
Discharge temperature -20°C~60°C
Storage temperature -20°C~45°C
Ingress Protection Rating IP20
Certification UN38.3, MSDS, EN55032, EN55024, EN61000-3-2, EN61000-3-3
  • Safe & reliable performance with Lithium Iron Phosphate (LFP) cell

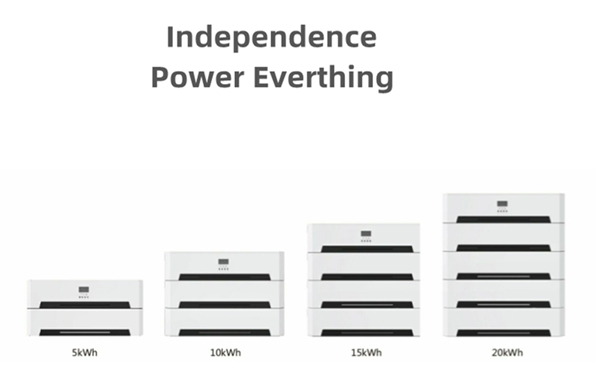

  • Flexible investment with 2.5kwh modular design, scalable from 5kwh to 20kwh
  • 80% depth of discharge (DoD)
  • More usable energy with pack level energy optimization

With many years of experience, we are a professional and leading manufacturer specialized in LiFePO4 batteries. Our professional custom battery pack solutions help you save a lot of time and money, as well as get established on the market quickly.

YEARS OF LIFEPO4 BATTERY
LiFePO4 Battery Detail 1
LiFePO4 Battery Detail 2
LiFePO4 Battery Detail 3
LiFePO4 Battery Detail 4
LiFePO4 Battery Detail 5
LiFePO4 Battery Detail 6
LiFePO4 Battery Detail 7
LiFePO4 Battery Detail 8
LiFePO4 Battery Detail 9
LiFePO4 Battery Detail 10
LiFePO4 Battery Detail 11
LiFePO4 Battery Detail 12
LiFePO4 Battery Detail 13
LiFePO4 Battery Detail 14
LiFePO4 Battery Detail 15
LiFePO4 Battery Detail 16
LiFePO4 Battery Detail 17
LiFePO4 Battery Detail 18
LiFePO4 Battery Detail 19
LiFePO4 Battery Detail 20
LiFePO4 Battery Detail 21
LiFePO4 Battery Detail 22
LiFePO4 Battery Detail 23
LiFePO4 Battery Detail 24
LiFePO4 Battery Detail 25
LiFePO4 Battery Detail 26
LiFePO4 Battery Detail 27
LiFePO4 Battery Detail 28
LiFePO4 Battery Detail 29
LiFePO4 Battery Detail 30
LiFePO4 Battery Detail 31
LiFePO4 Battery Detail 32
LiFePO4 Battery Detail 33
LiFePO4 Battery Detail 34
Frequently Asked Questions
Are you a factory?
Yes, we are a professional factory. Welcome to visit our company at any time.
Do you have current samples in stock?
Usually we don't have them in stock, because different customers have different requests. Even if the voltage and capacity are the same, other parameters may vary. However, we can finish your sample quickly once the order is confirmed.
Are OEM & ODM available?
Sure, OEM & ODM are welcome and the logo can be customized to fit your requirements.
What's the delivery time for mass production?
Usually it takes 15-25 days. The exact timeframe depends on the quantity, material, battery cell model, and other factors. We suggest checking the delivery time on a case-by-case basis.
What is your MOQ?
A 1PCS sample order is acceptable for testing purposes.
What is the normal lifetime of the battery?
More than 800 cycles for lithium-ion batteries, and more than 2,000 cycles for LiFePO4 lithium batteries.
