The electricity generated by photovoltaics or city electricity is stored in the system. When there is no light or power outage, the electricity in the energy storage battery is converted for use by household electrical equipment. The product is modular in design, compact and convenient, easy to install, convenient to operate one-key switch, and multi-level energy management can realize automatic energy-saving control, safe and efficient, energy-saving and environmentally friendly, high reliability, and stable power supply.

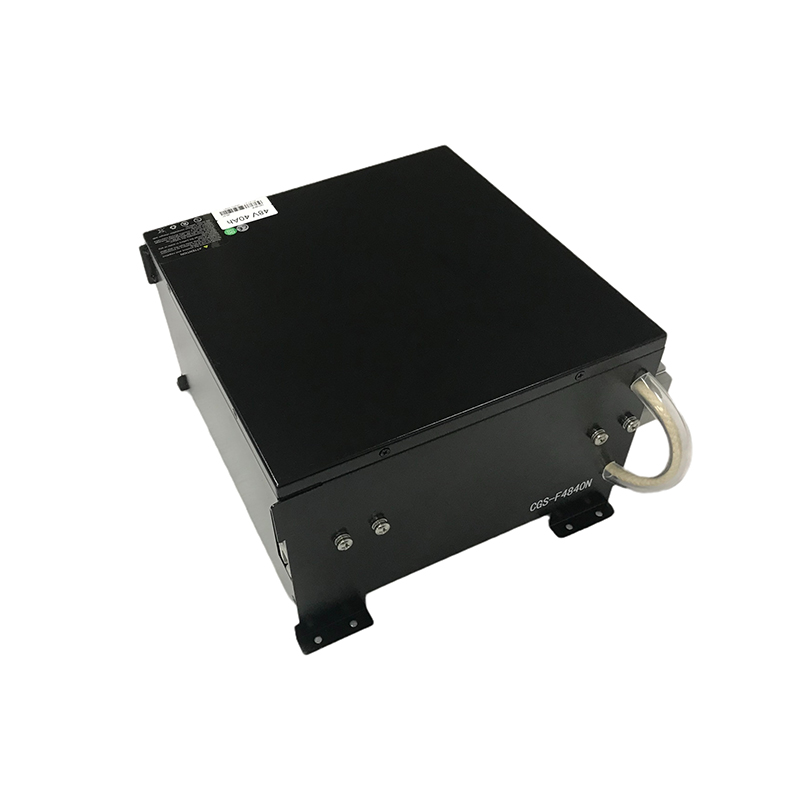

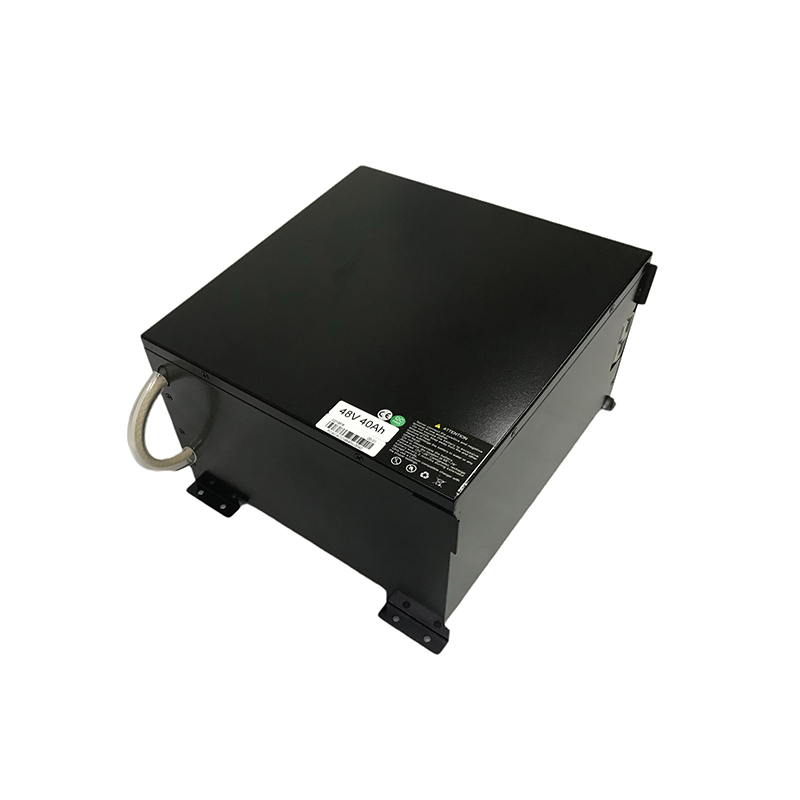

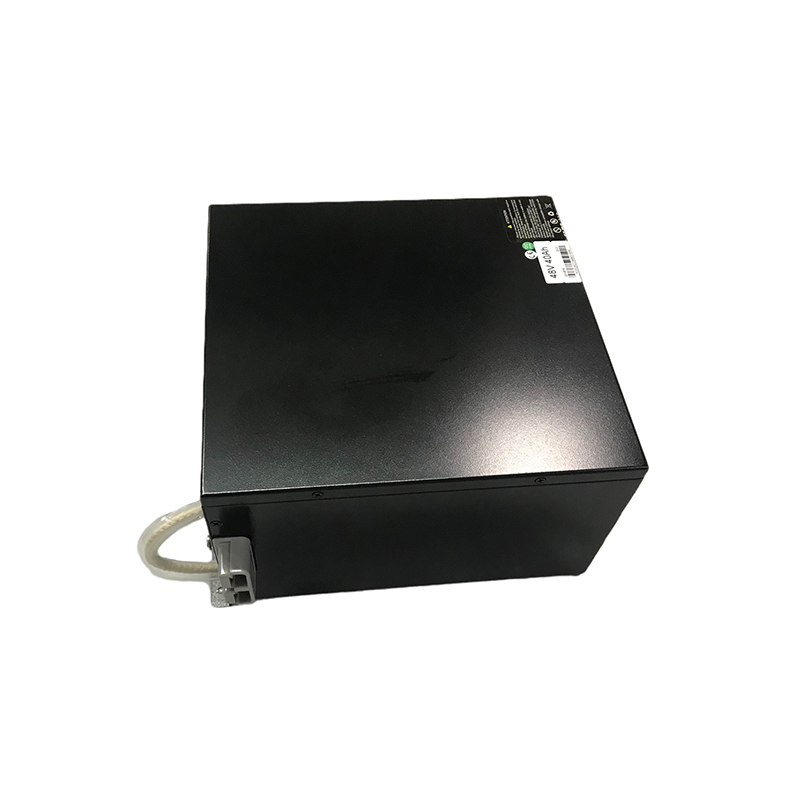

| Model No. | CGS-F4840N |
| Nominal voltage | 48V |
| Nominal capacity | 40Ah |
| Max. continuous charge current | 100A |
| Max. continuous discharge current | 100A |
| Cycle life | ≥2000 times |
| Charge temperature | 0°C ~ 45°C |
| Discharge temperature | -20°C ~ 60°C |
| Storage temperature | -20°C ~ 45°C |
| Weight | About 25kg |
| Dimension | 300mm*290mm*165mm |
| Application | Special designed for home energy storage system, also can be used for Back-up power, solar/wind systems, UPS, etc. |

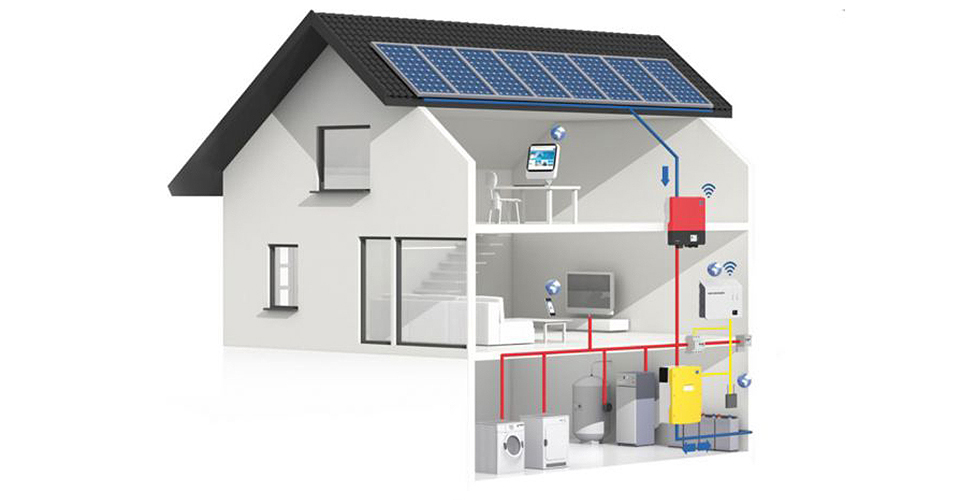

It is employed for ordinary household wind and wind power generation and energy storage, small business districts, uninterrupted power supply areas for offices, energy shortage areas, or areas with unstable power or isolated islands off the grid. The product is energy-saving and environmentally friendly, achieves good temperature adaptability, high charging and discharging efficiency, and supports high-current charging and discharging. The internal uses high-performance BMS system, which has stable performance and long service life.
