| Item | Parameters |
|---|---|
| Nominal Voltage | 3.2V |
| Nominal Capacity | 138Ah |
| Charging Method | CC |
| Charge Current | Standard charging current: 0.2C |
| Max. continuous charging current: 1.5C @ 23℃ | |
| Charging cut-off voltage | 3.8V |
| Discharge Current | Standard discharging current: 0.2C |
| Max. discharging current: 2C | |
| Discharging cut-off voltage | 2.0V |
| DCIR @ 50% SOC | 30s, 1.5C, 3.0±0.2mΩ |
| Working Temperature | Charge: -10~+50℃, Discharge: -20~+55℃ |
| Storage Temperature | -10~30℃ (< 1 year, SOC: 30%~60%) |
| Shipping Status | Voltage: 2.5-4.35V, SOC: 25%~50% |
| Cycle Life | ≥ 4000 times |
| Size | 960(L) * 13.5(T) * 90(W) mm |
| Weight | 2.63 ± 0.1 Kg |
Innovative design minimizes the risk of thermal runaway. It has undergone rigorous nail penetration tests without catching fire or exploding.
Maintains over 90% of capacity after 1,500 charge-discharge cycles, ensuring long-term consistent performance.
Offers high energy density for maximum energy storage in a compact volume, supporting extended range capabilities.

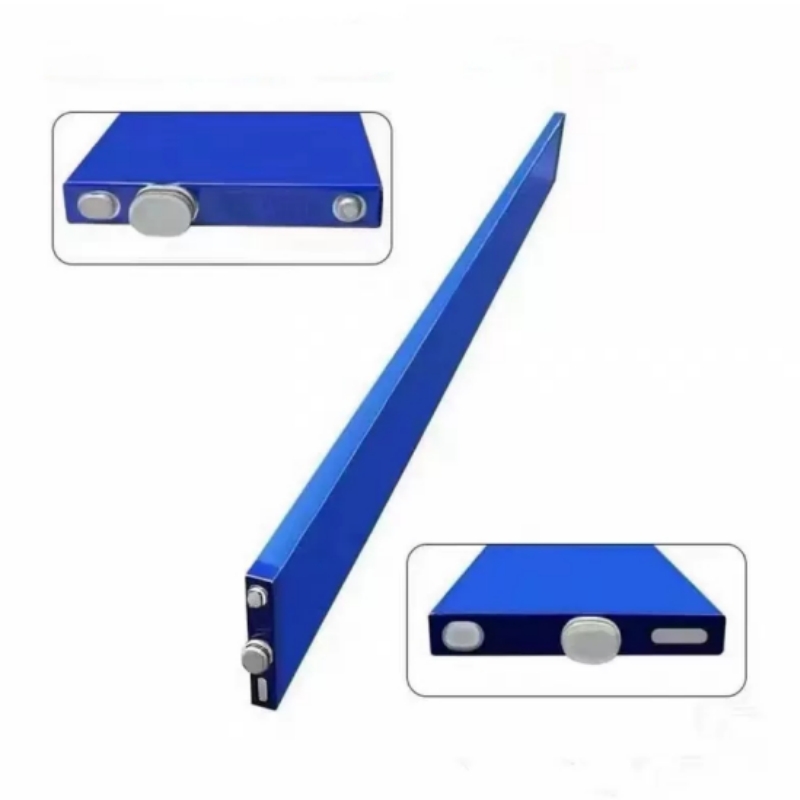

The thin, flat design allows for optimal space utilization, enabling more flexible layouts and design layouts.
A simplified manufacturing process and affordable raw materials translate to a highly competitive, accessible price point.
Consistent, reliable performance under extreme conditions. Longer lifespan and high efficiency contribute directly to reduced waste.

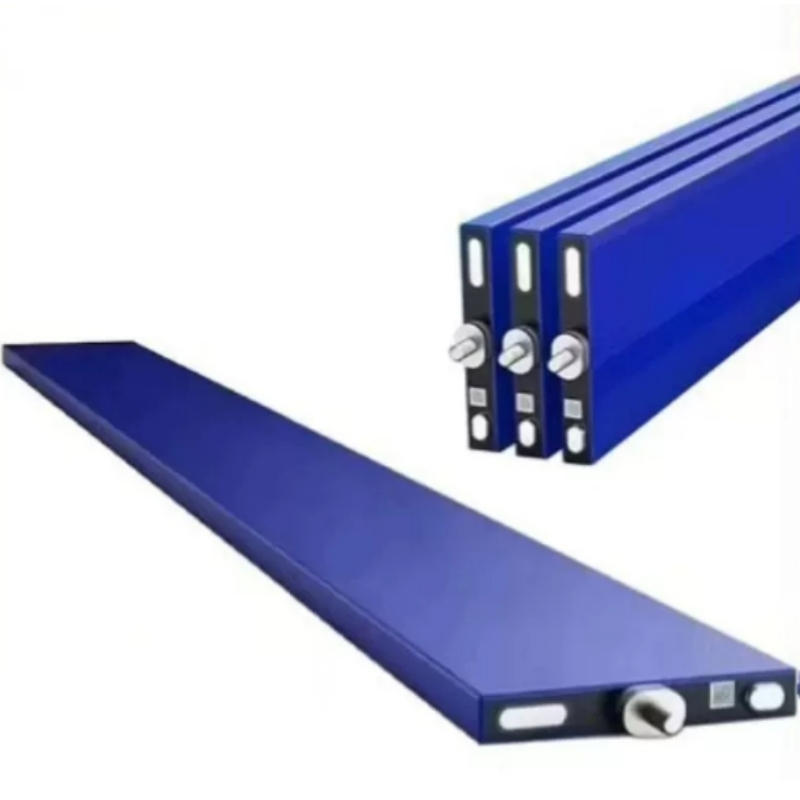

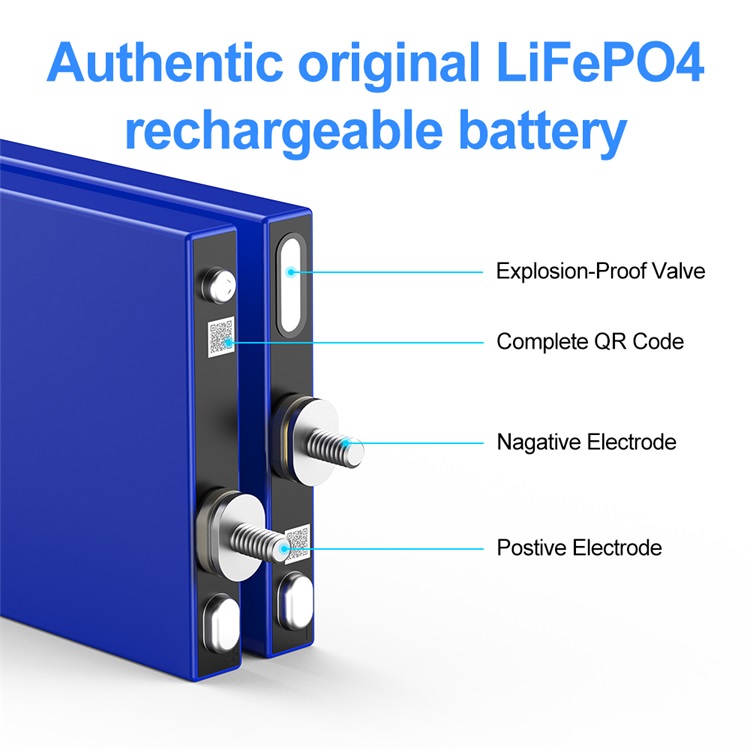

Unique Selling Point: The blade-like battery uses lithium iron-phosphate (LFP) as the cathode material, which offers a much higher level of safety than conventional lithium-ion batteries. Developed for maximum safety, it delivers outstanding strength, range, longevity, and durability, supported by an ultra-strong structure and flatter design.
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.
Technical inquiries and support are available daily. Any questions or troubleshooting requirements regarding the battery cells will be highly appreciated and resolved promptly.
The battery has a cycle life of ≥ 4000 times, providing exceptional longevity and maintaining reliable performance over years of operation.
The cell dimensions are 960mm in length, 13.5mm in thickness, and 90mm in width. Each individual battery cell weighs approximately 2.63 ± 0.1 Kg.
The charging temperature ranges from -10 to +50℃, and the discharging temperature ranges from -20 to +55℃, allowing for versatile performance across various climates.
